| Model | True CNC -1325 | Custom Size |
| Working Size | 1300x2500x200mm | 1500x3000mm 2000x3000mm 2000x4000mm Other Size |
| CNC Router Table Size | 1450*2950mm | |
| Accuracy | +0.03mm | |
| CNC Router Table Surface | Aluminium T-slot Table | |
| Frame | Heavy & Thick Steel Square Structure | |
| X-Y Structure | Gear and rack Transmission | |
| Z Structure | Ball Screw of TBI, Taiwan | |
| Rapid Feed Rate | 25000mm/min | |
| Maximum Speed Rate | 20000mm/min | |
| Spindle Power | 3kw | |
| Spindle Speed | 0-18000RPM for Water Cooled | |
| Collet System | Highly Precise CNC ER 25 Collet (optional) | |
| Drive Motors | Stepper motor and drivers | |
| Working Voltage | Single phase 220v 50Hz | |
| Parameters | Standard Specifications ABP-1325-PZ | |
| Operating System | DSP A11 | |
| Computer Interface | USB | |
| Running Environment | Temperature: 0°C~45°C, Relative Humidity: 30%~75% | |
| Machine Power | 5kw | |
| Machine Dimension | 2150*3000*1800mm | |
| Packing Size | 2250*3200*2100mm | |

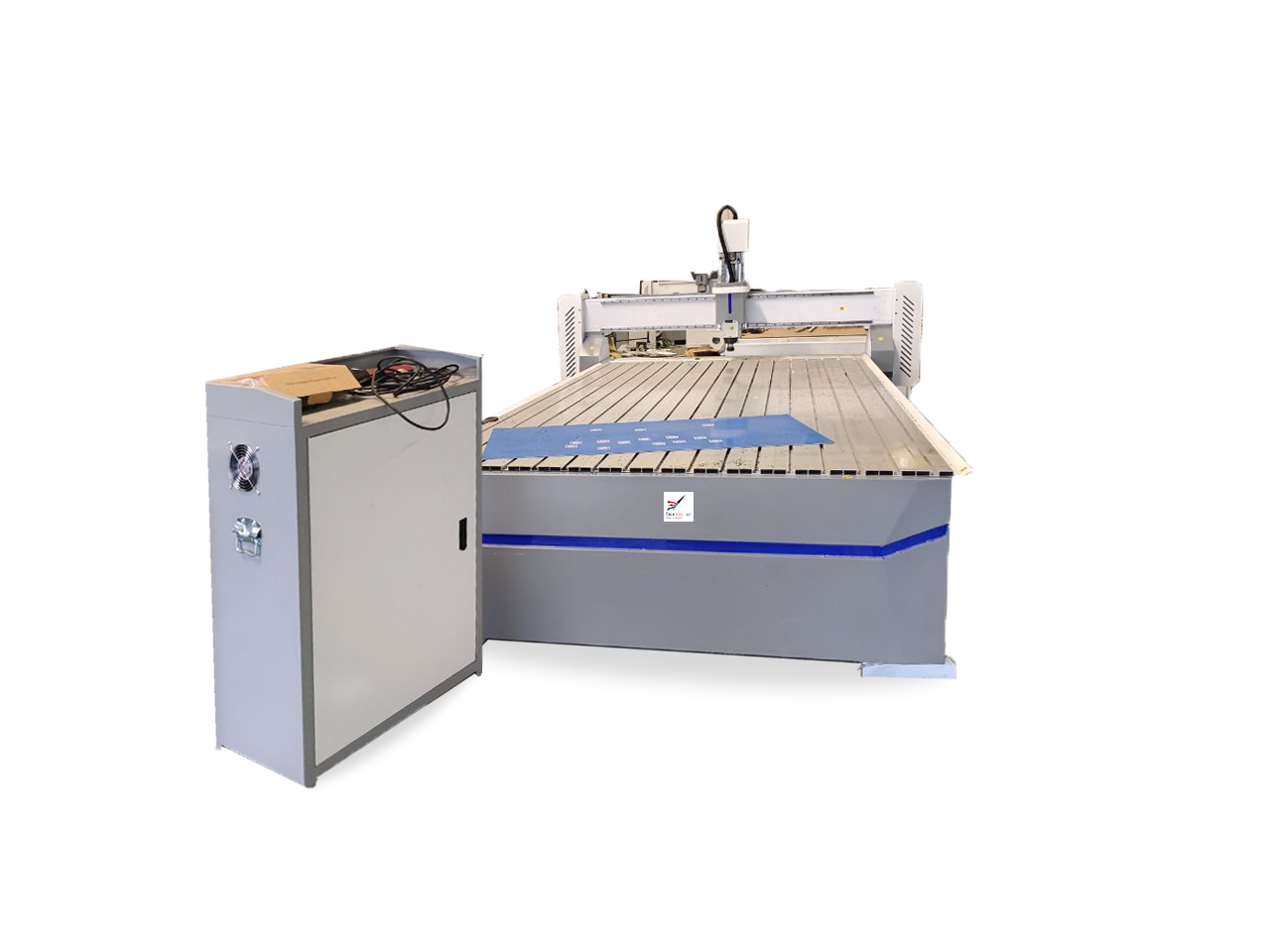

Heavy-duty CNC router with high accuracy, fast speed, and DSP control, designed for precise cutting and engraving with customizable working sizes and stable steel construction.
